THE REVOLUTIONARY I-PLATE.

IRONMAN HAS DONE IT ONCE AGAIN. WITH SIMPLICITY, THE NEW I-PLATE ALLOWS YOU TO HAVE THE CHOICE OF A FLAT GROUND PLATE OR ONE WITH A VERTICAL FLANGE. ALLOWING IT TO BE BURIED, YET STILL PROTRUDE ABOVE THE CONCRETE FLOOR FOR FUTURE CONNECTIONS.

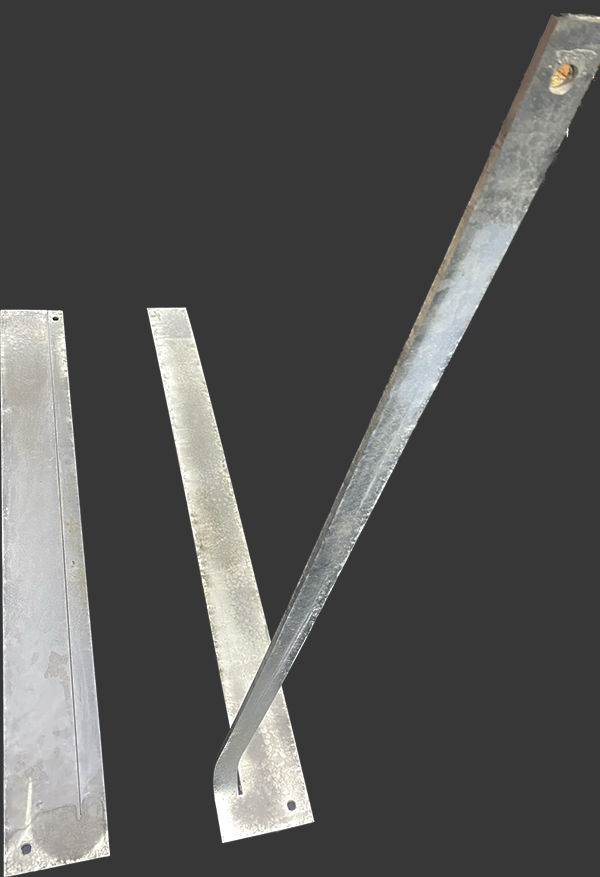

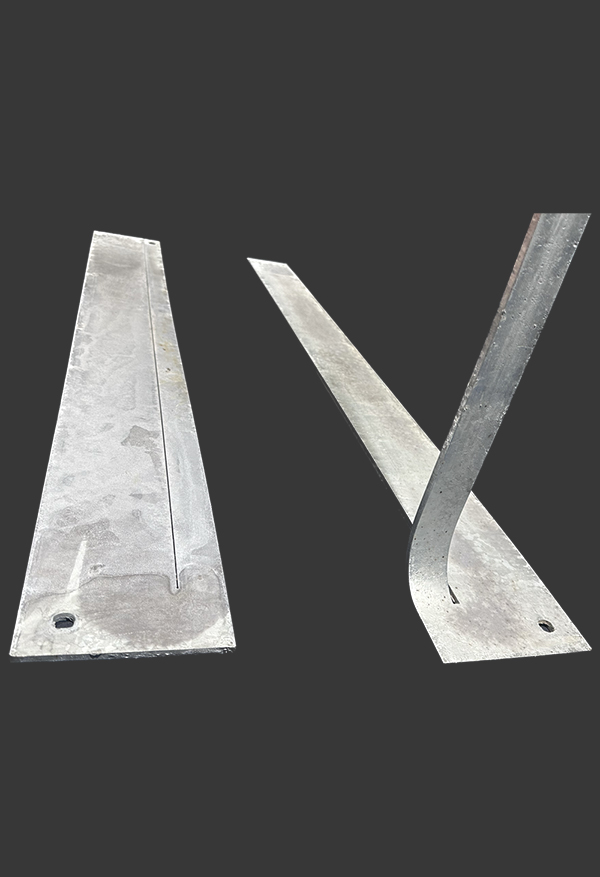

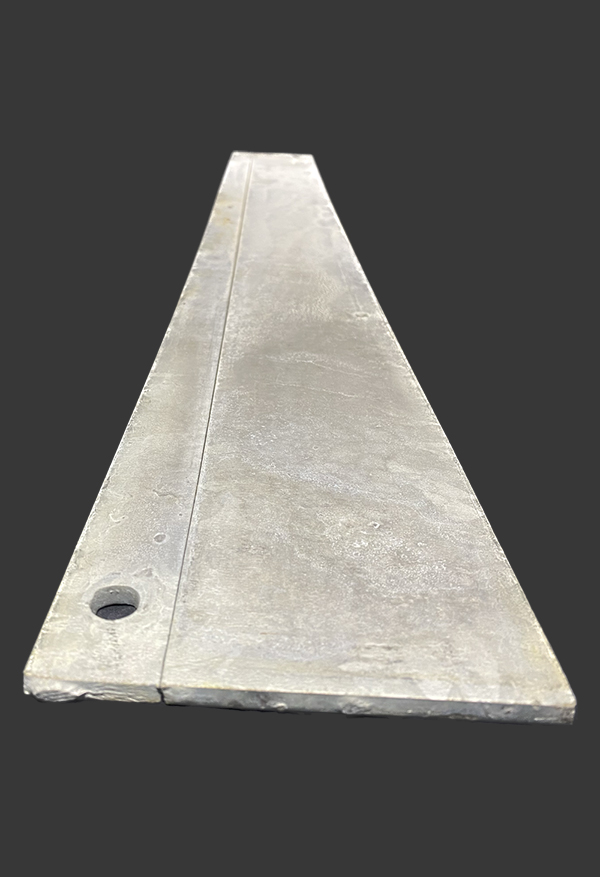

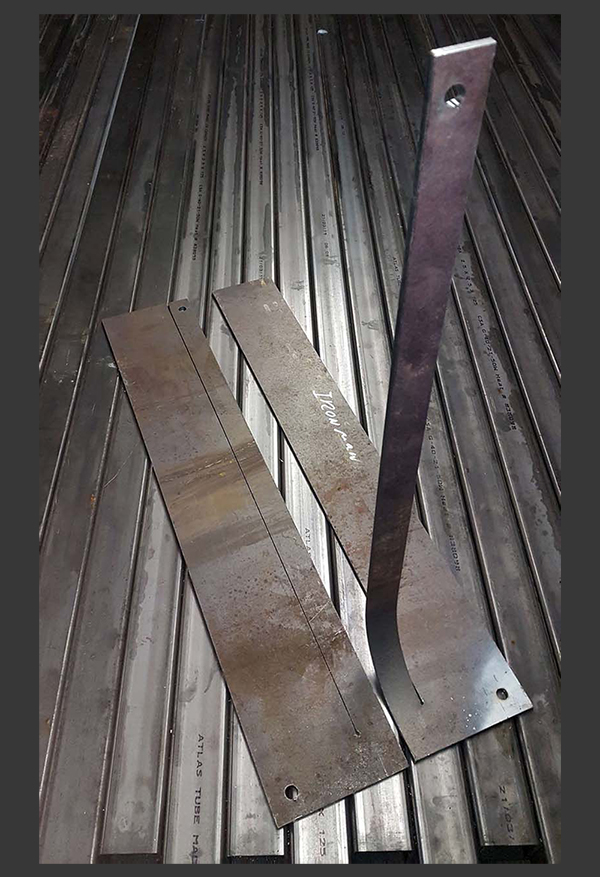

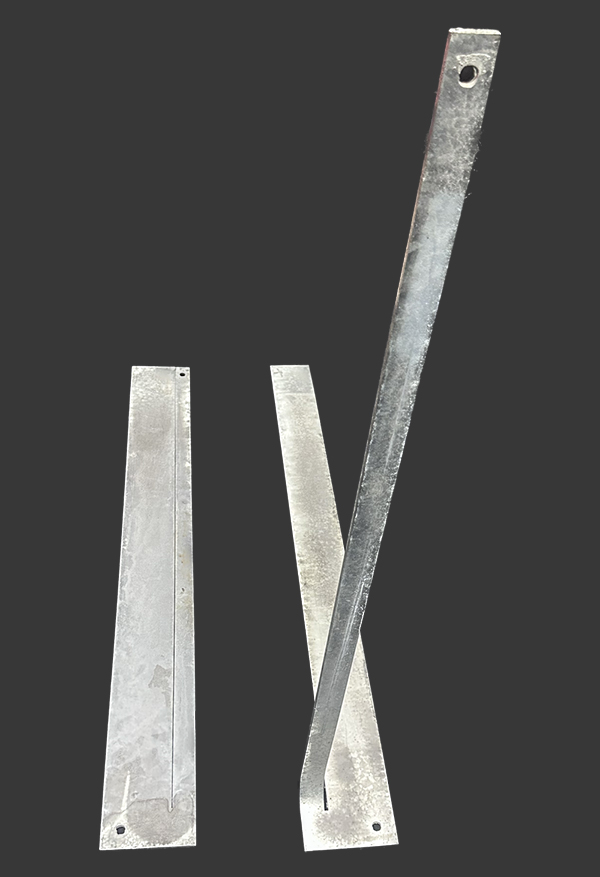

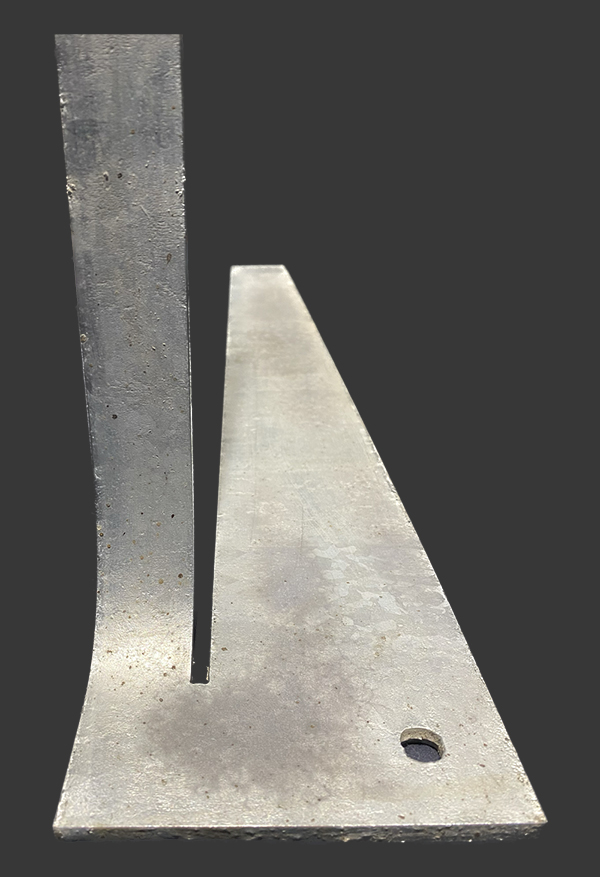

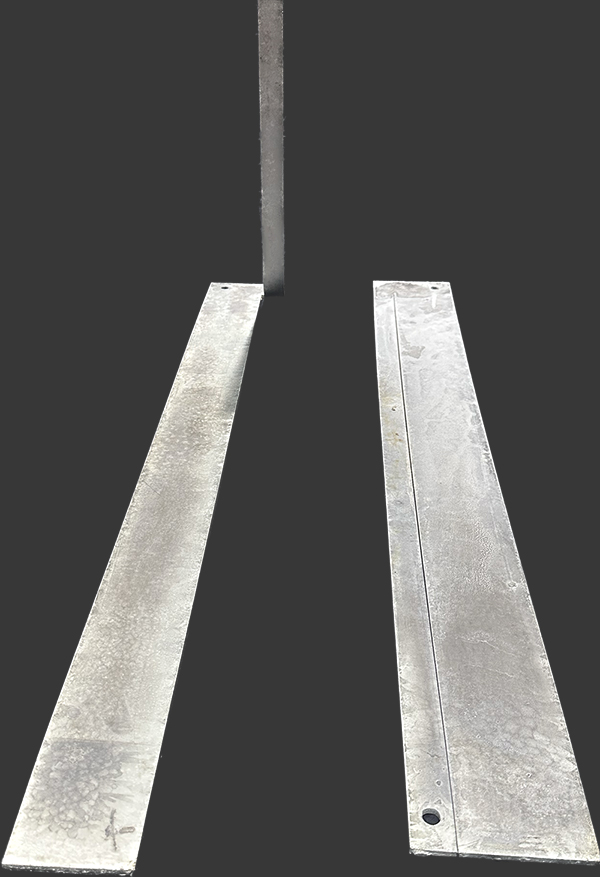

THE I-PLATE IS 39.75″ x 4.875″ x 1/4″. THE FLANGE (SIZED TO EQUAL THE MASS OF A 5/8″ ROD) CAN BE LEFT FLAT FOR BURIED CONNECTION OR EASILY BENT BY HAND FOR A VERTICAL CONNECTION ABOVE THE FINISHED FLOOR. THERE IS A HOLE IN THE FLANGE AND MAIN BODY ALLOWING INTERCONNECTION IN A GROUND GRID SITUATION WHERE POOR SOIL EXHISTS.
THIS I-PLATE ALSO REVOLUTIONIZES THE SHIPPING AND HANDLING OF THIS PRODUCT BY REMOVING THE 5/8″ VERTICAL ROD MAKING SHIPPING AND STORAGE EXPENSIVE. THE I-PLATE ALLOWS HUNDREDS OF THESE TO BE STACKED FLAT ON EACH PALLET AND THEN PALLETS STACKED ON EACHOTHER. THIS PRODUCT ALSO WEIGHS IN AT ONLY 14 LBS.
IRONMAN IS SO SURE OF THE SUCCESS OF THIS PRODUCT THAT WE DECIDED TO APPLY FOR A PATENT, WHICH HAS NOW BEEN GRANTED. WE LOOK FORWARD TO OFFERING THIS PRODUCT TO MANY CUSTOMERS IN CANADA AND THE UNITED STATES.
ADVANTAGES

– No need for expensive underground certified connectors
– Above ground connectors are 20% the price of underground connectors
– No visual verification of connection needed prior to pouring floor
– No added expense or delays due to need of visual inspection
– May be connected to electrical hardware at any time
– Ideal in respect to storage, handling, and use
– Can be used for above or below ground connections
– Can also be interconnected to other devices forming a grounding grid
– Can be installed by any person with a few easy instructions
– Requires only one shovel width wide to install along footing

CLICK  THE BUTTONS BELOW FOR SPECS AND DETAILS.
